ASHOKA

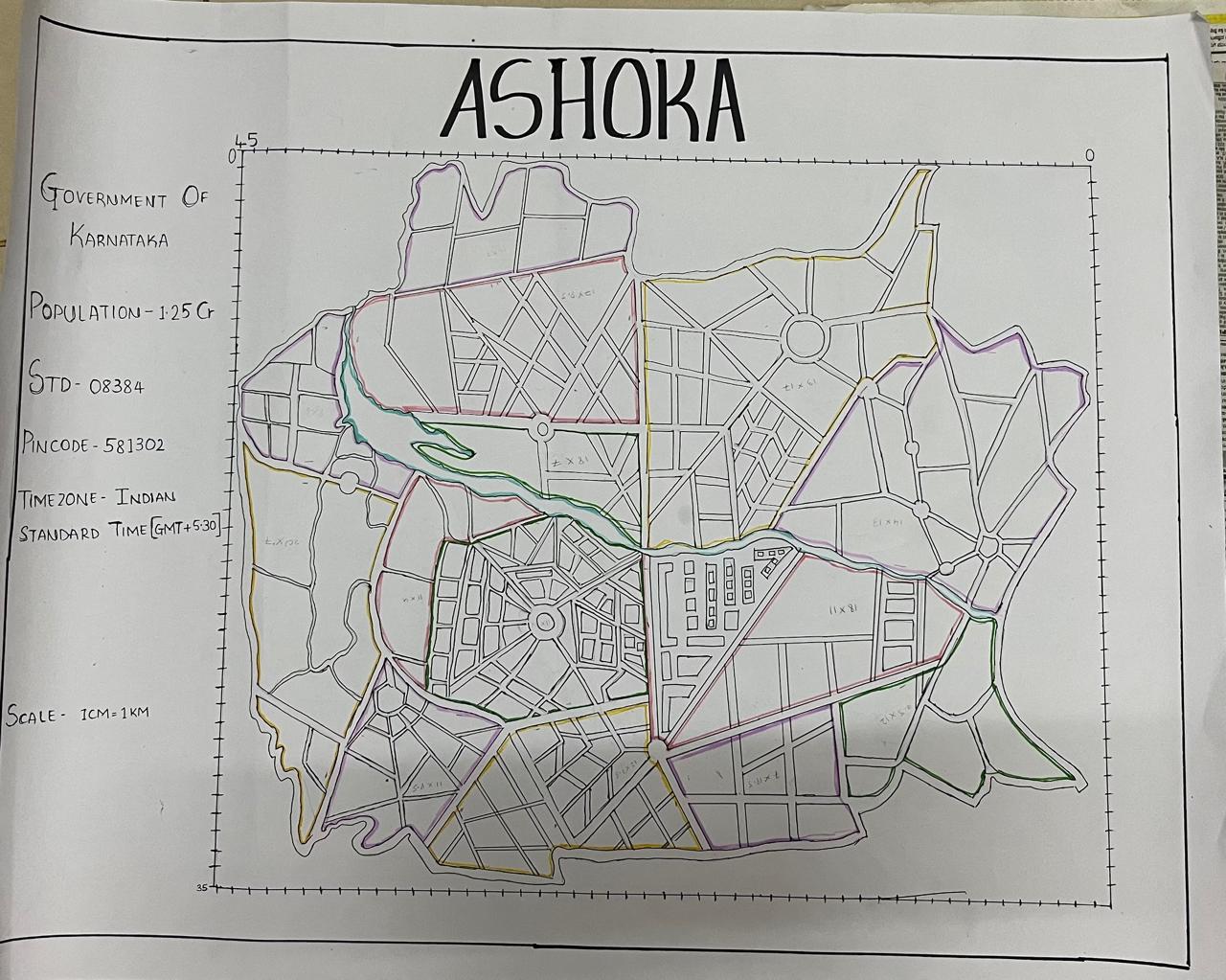

City Design

Project problem statement

City Design

Identified Business Cases

Rithika Patil

Rithika Patil

Identified Business Case:

1.Encouraging Carpooling : A simple app to help people find others going the same way to share rides.

Algorithms used

  Bellman-Ford Algorithm Pseudocode:
  1. Initialize distances from the source to all vertices as infinity.
  2. Set the distance to the source as 0.
  3. Repeat |V|-1 times:
     For each edge (u, v):
       If distance[u] + weight(u, v) < distance[v]:
         Update distance[v] to distance[u] + weight(u, v).
  4. Check for negative-weight cycles:
     If distance[u] + weight(u, v) < distance[v], report a cycle.

  Boyer-Moore Algorithm Pseudocode:
  1. Preprocess the pattern to create:
     a. Bad character table.
     b. Good suffix table.
  2. Align the pattern with the text.
  3. Repeat until alignment exceeds text length:
     a. Compare characters from right to left.
     b. If a mismatch occurs:
        i. Shift the pattern using the bad character table or good suffix table.
     c. If a match occurs, report the position and shift pattern.


2.Walking and Cycling Safety : A map that shows safe walking and cycling paths in the city.

Algorithms used

      Breadth-First Search (BFS) Pseudocode:
      1. Initialize an empty queue and enqueue the starting vertex.
      2. Mark the starting vertex as visited.
      3. While the queue is not empty:
         a. Dequeue a vertex from the queue.
         b. Process the dequeued vertex.
         c. For each adjacent vertex:
            - If it is not visited:
              i. Mark it as visited.
              ii. Enqueue it.

      Depth-First Search (DFS) Pseudocode:
      1. Initialize a stack (or use recursion) and push the starting vertex.
      2. Mark the starting vertex as visited.
      3. While the stack is not empty:
         a. Pop a vertex from the stack.
         b. Process the popped vertex.
         c. For each adjacent vertex:
            - If it is not visited:
              i. Mark it as visited.
              ii. Push it onto the stack.

Ride-Share code:
#include
#include
#include
#include
#include
using namespace std;

// Structure for a user
struct User {
    int id;
    string name;
    string contact;
};

// Structure for a ride
struct Ride {
    int id;
    int userId;
    string startLocation;
    string destination;
    int distance;
    int seatsAvailable;
};

// Structure for an edge in the graph
struct Edge {
    int source;
    int destination;
    int weight;
};

vector users;
vector rides;
vector edges;
vector locations;
int userIdCounter = 1;
int rideIdCounter = 1;

// Helper function to get location index
int getLocationIndex(const string &location) {
    auto it = find(locations.begin(), locations.end(), location);
    if (it == locations.end()) {
        locations.push_back(location);
        return locations.size() - 1;
    }
    return it - locations.begin();
}

// Function to register a new user
void registerUser() {
    User user;
    user.id = userIdCounter++;
    cout << "Enter your name: ";
    cin.ignore();
    getline(cin, user.name);
    cout << "Enter your contact: ";
    getline(cin, user.contact);
    users.push_back(user);
    cout << "User registered successfully! Your User ID is: " << user.id << endl;
}

// Function to post a ride
void postRide() {
    Ride ride;
    cout << "Enter your User ID: ";
    cin >> ride.userId;
    auto userExists = find_if(users.begin(), users.end(), [&](User &u) { return u.id == ride.userId; });
    if (userExists == users.end()) {
        cout << "User ID not found! Please register first.\n";
        return;
    }

    ride.id = rideIdCounter++;
    cout << "Enter start location: ";
    cin.ignore();
    getline(cin, ride.startLocation);
    cout << "Enter destination: ";
    getline(cin, ride.destination);
    cout << "Enter distance (in km): ";
    cin >> ride.distance;
    cout << "Enter seats available: ";
    cin >> ride.seatsAvailable;

    int startIndex = getLocationIndex(ride.startLocation);
    int destIndex = getLocationIndex(ride.destination);

    edges.push_back({startIndex, destIndex, ride.distance});
    rides.push_back(ride);

    cout << "Ride posted successfully! Ride ID is: " << ride.id << endl;
}

// Bellman-Ford algorithm to find shortest paths
void bellmanFord(int source, int destination) {
    int n = locations.size();
    vector distance(n, INT_MAX);
    vector predecessor(n, -1);

    distance[source] = 0;

    for (int i = 0; i < n - 1; ++i) {
        for (const auto &edge : edges) {
            if (distance[edge.source] != INT_MAX && distance[edge.source] + edge.weight < distance[edge.destination]) {
                distance[edge.destination] = distance[edge.source] + edge.weight;
                predecessor[edge.destination] = edge.source;
            }
        }
    }

    for (const auto &edge : edges) {
        if (distance[edge.source] != INT_MAX && distance[edge.source] + edge.weight < distance[edge.destination]) {
            cout << "Negative weight cycle detected!\n";
            return;
        }
    }

    if (distance[destination] == INT_MAX) {
        cout << "No path exists between the specified locations.\n";
        return;
    }

    cout << "Shortest distance: " << distance[destination] << " km\n";
    cout << "Path: ";

    vector path;
    for (int at = destination; at != -1; at = predecessor[at]) {
        path.push_back(at);
    }
    reverse(path.begin(), path.end());

    for (size_t i = 0; i < path.size(); ++i) {
        cout << locations[path[i]];
        if (i != path.size() - 1) cout << " -> ";
    }
    cout << endl;
}

// Function to search for rides using Bellman-Ford
void searchRides() {
    string start, destination;
    cout << "Enter start location: ";
    cin.ignore();
    getline(cin, start);
    cout << "Enter destination: ";
    getline(cin, destination);

    int startIndex = getLocationIndex(start);
    int destIndex = getLocationIndex(destination);

    bellmanFord(startIndex, destIndex);
}

// Main menu
void menu() {
    int choice;
    do {
        cout << "\nRide Sharing App Menu:\n";
        cout << "1. Register User\n";
        cout << "2. Post a Ride\n";
        cout << "3. Search for Rides\n";
        cout << "4. Exit\n";
        cout << "Enter your choice: ";
        cin >> choice;

        switch (choice) {
            case 1:
                registerUser();
                break;
            case 2:
                postRide();
                break;
            case 3:
                searchRides();
                break;
            case 4:
                cout << "Exiting the application.\n";
                break;
            default:
                cout << "Invalid choice! Please try again.\n";
        }
    } while (choice != 4);
}

int main() {
    menu();
    return 0;
}


Sustainable Development Goals (SDGs)

Our project aligns with several SDGs, including Goal 9: Industry, Innovation, and Infrastructure, and Goal 11: Sustainable Cities and Communities. By promoting carpooling and providing safer walking and cycling paths, we aim to reduce emissions and enhance urban life quality.

SDG 9: Industry, Innovation, and Infrastructure

Goal 9: Industry, Innovation, and Infrastructure

SDG 11: Sustainable Cities and Communities

Goal 11: Sustainable Cities and Communities
